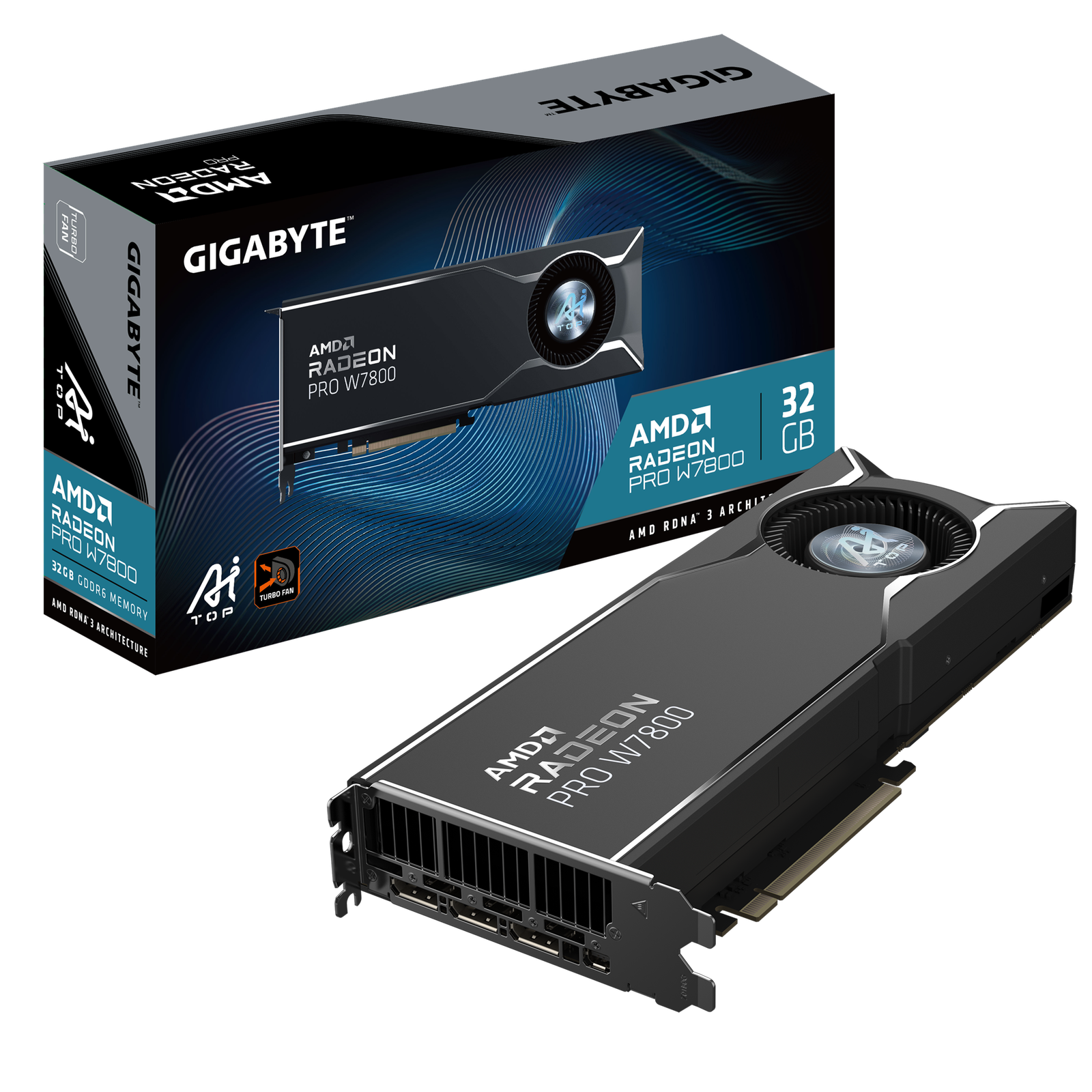

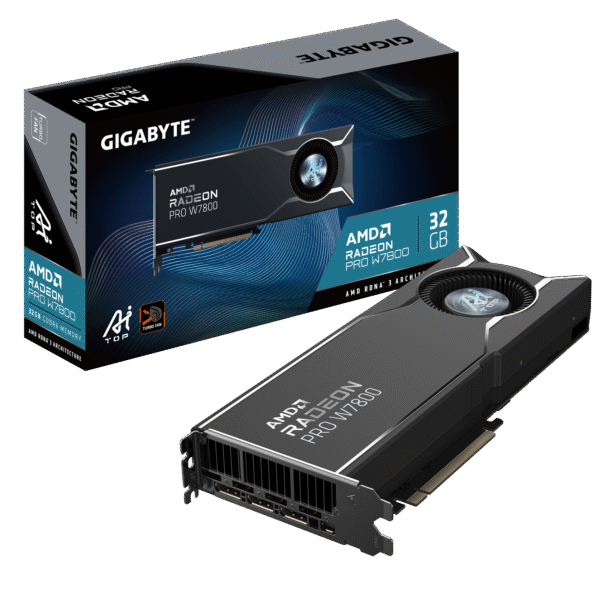

Gigabyte Radeon PRO W7800 AI TOP 32GB Graphics Card

Product Description

Specification
Details

Graphics ProcessingRadeon™ PRO W7800
Stream Processors4480
Computing Units70
AI Accelerators140
Ray Accelerators70
Peak FP32 Performance45.2 TFLOPS
Peak FP16 Performance90.5 TFLOPS
Memory Size32 GB
Memory TypeGDDR6 with ECC
Memory Bus256 bit
Memory Bandwidth576 GB/s
Card BusPCI-E 4.0 x16

Max Digital Resolution

4x 4096×2160 (4K DCI) @ 120Hz with DSC

2x 6144×3456 (6K) 12-bit HDR @ 60Hz Uncompressed

1x 7680×4320 (8K) 12-bit HDR @ 60Hz Uncompressed

1x 12288×6912 (12K) @ 120Hz with DSC

Multi-view4
Card SizeL=293 mm, W=126 mm, H=42 mm, Dual Slot
Product Weight1.25 kg
PCB FormATX
DirectXDirectX 12 API
OpenGL4.6
Max Power Consumption260W Peak
Recommended PSU700W
Power Connectors2x 8 Pin
OutputDisplayPort 2.1 x3, Mini DisplayPort 2.1 x1
AccessoriesManual

Supported Rendering Formats

1x Encode & Decode (AV1)

2x Decode (H265/HEVC, 4K H264)

2x Encode (incl. AV1 Encode and Decode)

Supported Technologies

AMD Viewport Boost

AMD Remote Workstation

AMD Radeon™ Media Engine

AMD Software PRO Edition

AMD Radeon™ VR Ready Creator

AMD Radeon™ ProRender
