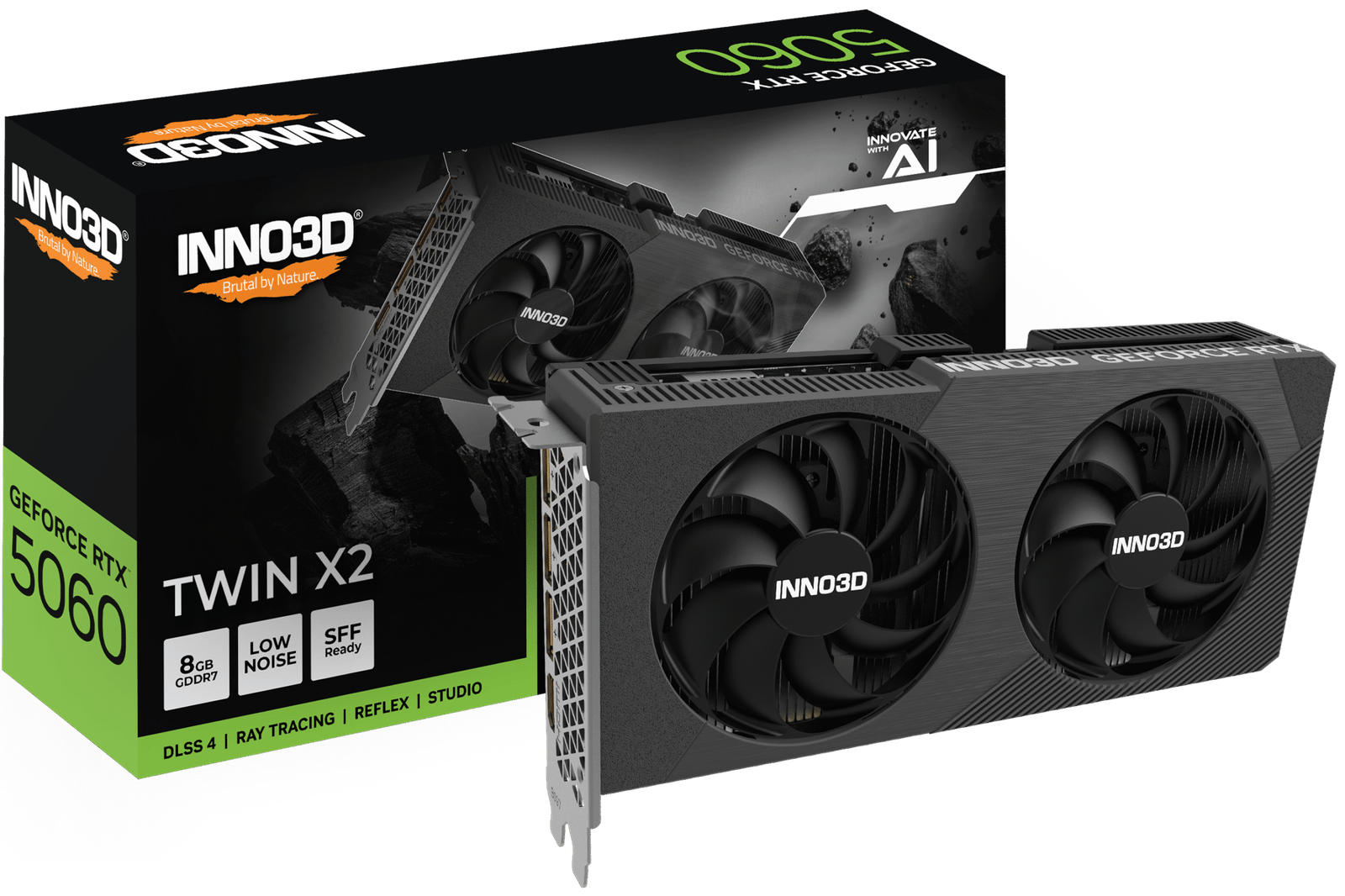

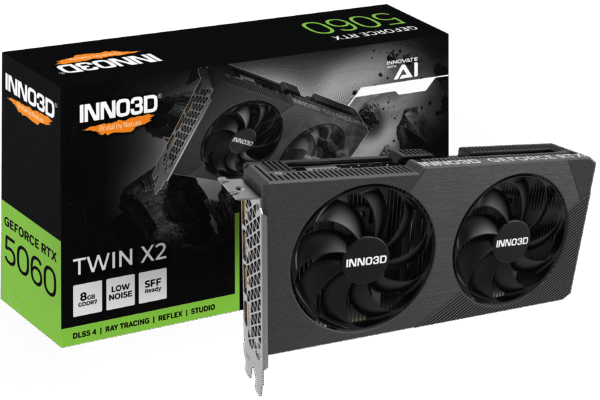

Inno3D GeForce RTX 5060 Twin X2 8GB GDDR7 PCI-Express Graphics Card

Product Description

N50602-08D7-195071N Specifications

CUDA Cores3840
Boost Clock (MHz)2497MHz
Base Clock (MHz)2280MHz
Thermal and Power Spec
Minimum System Power Requirement (W)550W
Supplementary Power Connectors1x PCIe 8-pin cables
Memory Specs
Memory Clock28Gbps
Standard Memory Config8GB
Memory InterfaceGDDR7
Memory Interface Width128-bit
Memory Bandwidth (GB/sec)448 GB/sec
Feature Support
Real-Time Ray TracingYes
Ray Tracing Cores4th Generation, 58 TFLOPS
Tensor Cores5th Generation, 614 AI TOPS
NVIDIA ArchitectureBlackwell
Microsoft DirectX12 Ultimate
NVIDIA DLSS4
NVIDIA AnselYes
NVIDIA FreeStyleYes
Bus SupportPCI Express Gen 5
NVIDIA ShadowPlayYes
OS CertificationWindows 11 / 10, Linux, FreeBSDx86
NVIDIA HighlightsYes
NVIDIA G-SYNC™-ReadyYes
Game Ready DriversYes
NVIDIA Studio DriversYes
NVIDIA GPU Boost™Yes
Vulkan API1.4
OpenGL4.6
NVIDIA Encoder1x Ninth Generation
NVIDIA Decoder1x Sixth Generation
Accessories
Graphics Card DimensionsLength: 225mm, Height: 116mm, Width: 41mm
Display Support
Multi MonitorUp to 4
Maximum Digital Resolution4K at 480Hz or 8K at 165Hz with DSC
HDCP2.3
Standard Display Connectors3x DisplayPort 2.1b, 1x HDMI 2.1b

GeForce RTX 50 Series – Game Changer!

Powered by NVIDIA Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of AI horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.

RTX AI PCs

NVIDIA Powers the World’s AI. And Yours.

Upgrade to advanced AI with NVIDIA GeForce RTX™ GPUs and accelerate your gaming, creating, productivity, and development. Thanks to built-in AI processors, you get world-leading AI technology powering your Windows PC.
