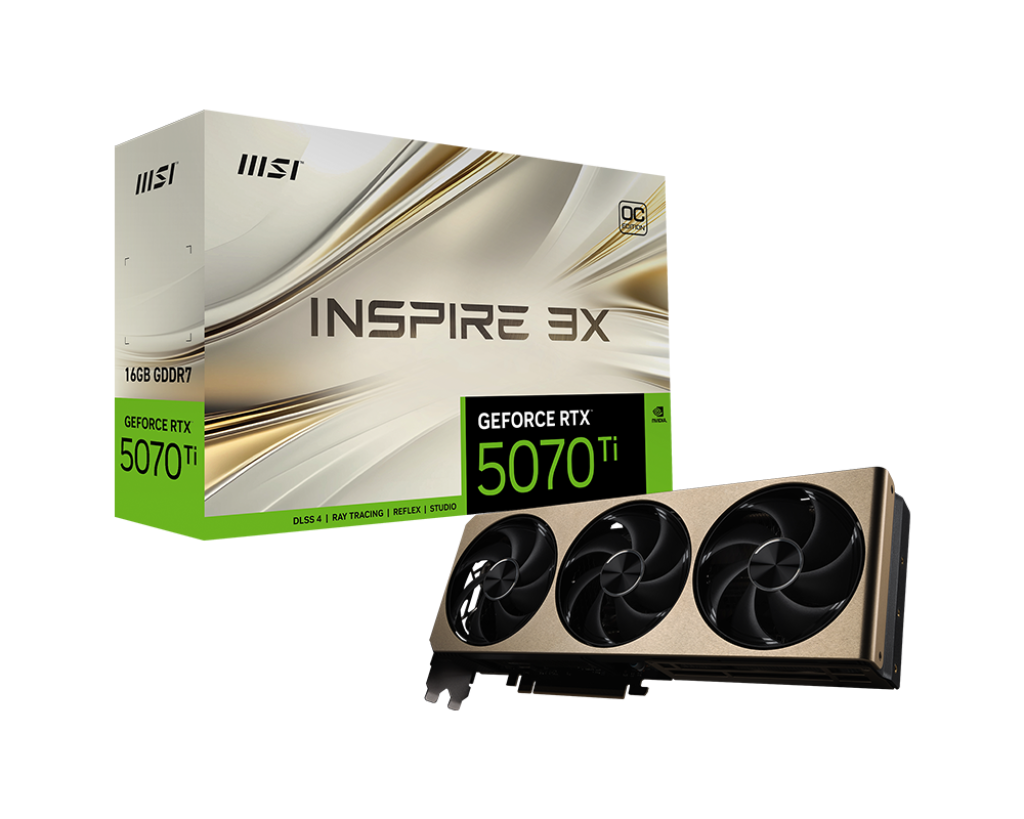

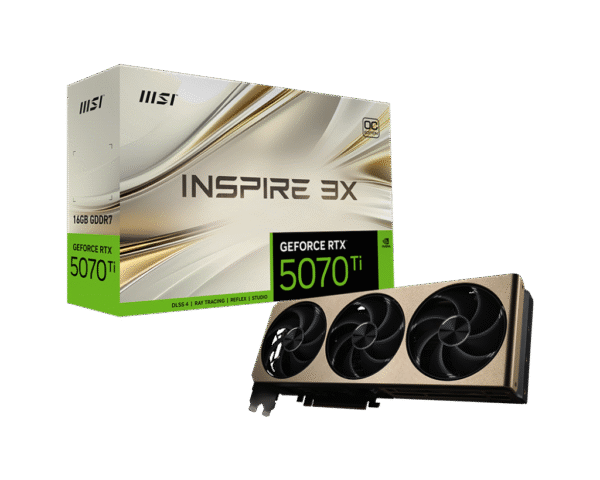

MSI GeForce RTX 5070 Ti Inspire 3X OC Plus 16GB GDDR7 PCI-Express Graphics Card

Product Description

Powered by the NVIDIA Blackwell architecture and DLSS 4
SFF-Ready Enthusiast GeForce Card
Core Clock:

Extreme Performance: 2497 MHz (MSI Center)
Boost: 2482 MHz

STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
WAVE-CURVED 3.0: Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow.
AIR ANTEGRADE FIN: Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.
Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Specification
Details

Marketing Name
GeForce RTX™ 5070 Ti 16G INSPIRE 3X OC PLUS

Model Name
G507T-16I3CP

Graphics Processing Unit
NVIDIA® GeForce RTX™ 5070 Ti

Interface
PCI Express® Gen 5

Core Clocks
Extreme Performance: 2497 MHz (MSI Center), Boost: 2482 MHz

CUDA® CORES
8960 Units

Memory Speed
28 Gbps

Memory
16GB GDDR7

Memory Bus
256-bit

Output
DisplayPort x 3 (v2.1b), HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support
Y

Power Consumption
300W

Power Connectors
16-pin x 1

Recommended PSU
750W

Card Dimension (mm)
288 x 112 x 50 mm

Weight (Card / Package)
962 g / 1431 g

DirectX Version Support
12 Ultimate

OpenGL Version Support
4.6

Maximum Displays
4

G-SYNC® Technology
Y

Digital Maximum Resolution
7680 x 4320

GeForce RTX 50 Series – Game Changer!

Powered by NVIDIA Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of AI horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.

RTX AI PCs

NVIDIA Powers the World’s AI. And Yours.

Upgrade to advanced AI with NVIDIA GeForce RTX™ GPUs and accelerate your gaming, creating, productivity, and development. Thanks to built-in AI processors, you get world-leading AI technology powering your Windows PC.
